Overview

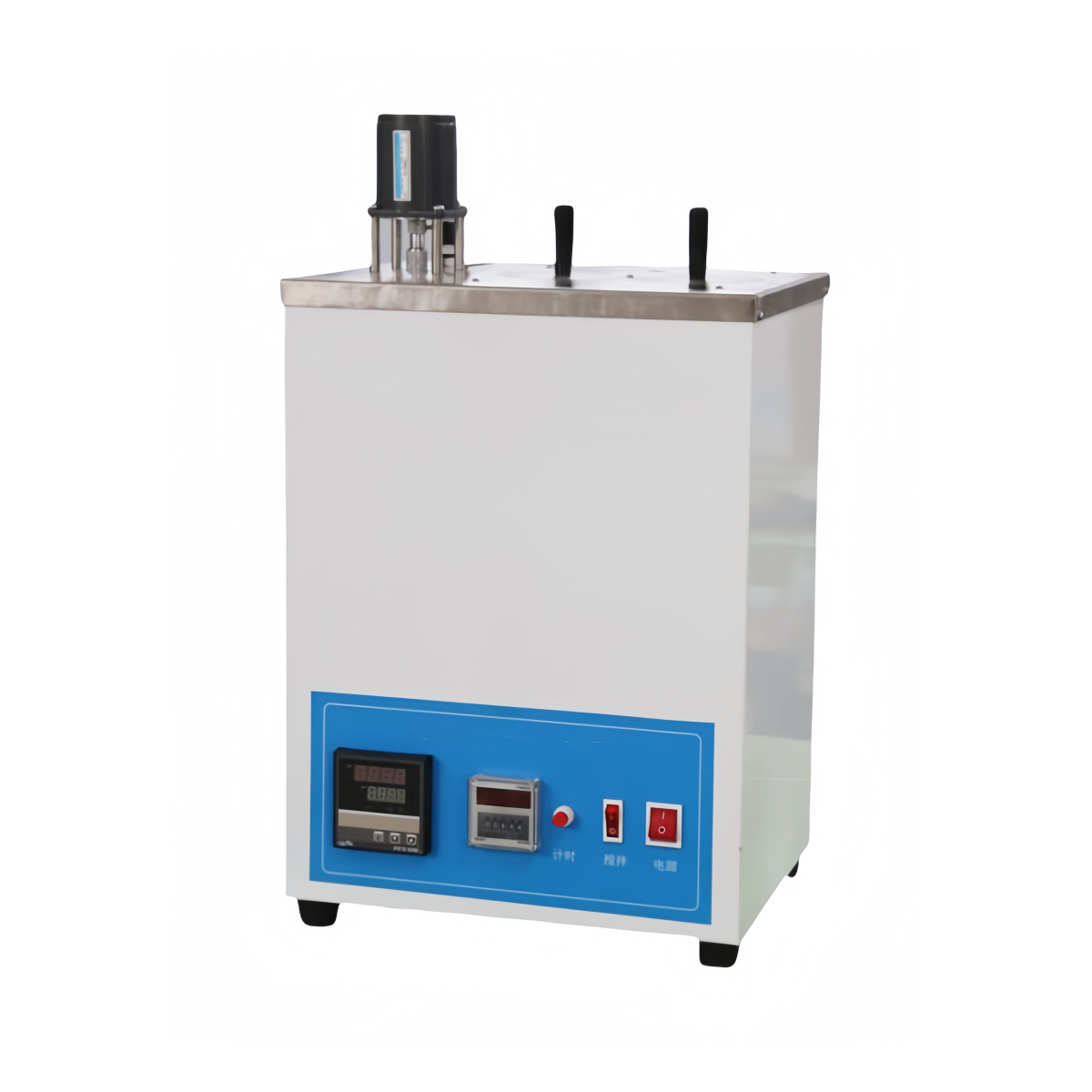

Copper Strip Corrosion Tester is suitable for evaluating the degree of copper strip corrosion caused by petroleum products such as aviation gasoline, aviation turbine fuel, motor gasoline, agricultural tractor fuel, washing solvent, kerosene distillate fuel and lubricating oil according to the test method specified in standard ASTM D130.

Features

• Control mode: temperature control system, digital display temperature control is accurate.
• Stainless steel bath and shell, rust-proof.
• The instrument has a total of 4 test holes.
• The instrument can hang two test bombs and two test tube racks at the same time.
• One test tube rack can hold 3 test tubes.
• Adopting foreign advanced PID temperature control technology, PID parameters can be self-tuned.

Specifications

1. Working power supply: AC220V±10 50Hz
2. Power: 2000W
3. Temperature control range: room temperature ~ 100℃
4. Temperature sensor: Pt100 (platinum resistance)
5. Stirring mode: motor stirring, 1200r/min
6. Humidity ≤85%
7. Temperature control mode: digital display temperature controller

Standard configuration

1. Host
2. Thermometer
3. Bomb
4. Copper sheet test piece
5. Observation tube
6. Grinding sheet clip
7. Test tube rack
8. Test tube
9. Fuse
10. Instruction manual
11. Certificate of conformity
