Overview

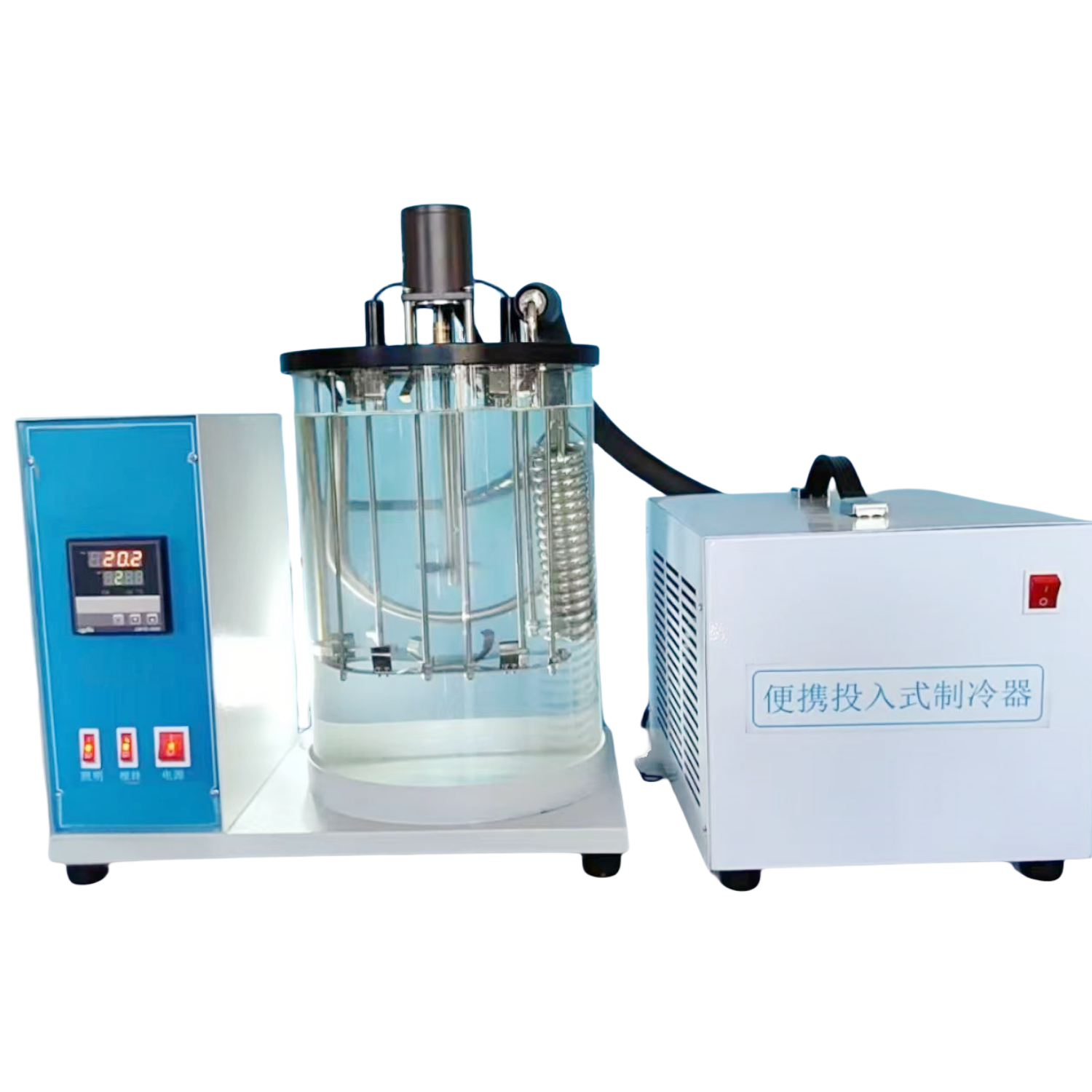

Density tester for petroleum products is designed and manufactured according to ASTM D1298 standard, it is suitable for determining the density of oils and petroleum products.

Features

• Temperature control system, digital display, precisely control the temperature.
• The constant temperature bath is made of a transparent cylindrical glass cylinder.
• Equipped with a portable refrigerator.
• Two test holes and can measure 2 samples at the same time.
• Adopting advanced PID temperature control technology, PID parameters can be programed.
• Also be used for high temperature density.
• The temperature is continuously adjustable.

Specifications

1. Power supply: 220VAC±10% 50Hz
2. Water bath heating power: 1200W
3. Total power: about 1250W
4. Water bath temperature control range: 20℃～90℃
5. Temperature control accuracy: ±0.1℃
6. Number of test holes: 2
7. Weight: 38kg

Configuration

1. Host
2. Graduating cylinder
3. Thermometer
4. Thermometer rubber plug
5. Density meter
6. Portable immersion refrigerator
