Overview

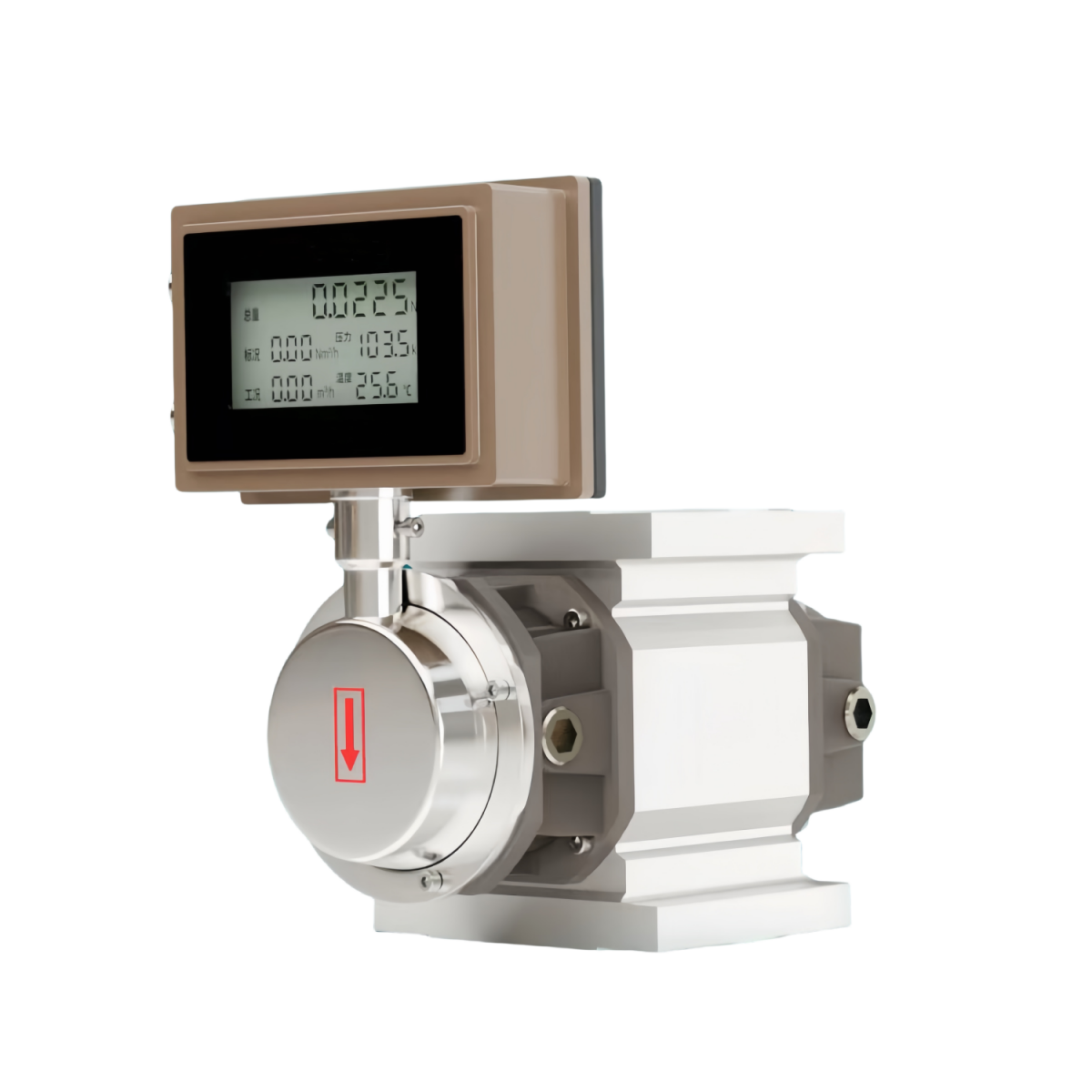

Gas Roots flowmeter is a kind of gas monitoring and measuring instrument with high precision, high reliability and wide range.

Intelligent gas Roots flowmeter is a new type of flowmeter which integrates flow, temperature, pressure sensors and intelligent integrator. It widely application for measuring non-corrosive gases such as natural gas, city gas, propane, nitrogen, industrial inert gas, etc.

Features

• Wide range: the highest range reaches 1: 216
• Low initial flow: the Min. starting flow reaches 0.04m3/h.
• High precision and repeatability
• Low pressure loss: 0.08kPa-0.58kPa.
• High integration and low power consumption
• Compact structure: built in pressure sensor, temperature sensor and flow sensor
• Digital pressure temperature sensor
• Segment correction
• Complete data storage function
• Pulse/RS485/4-20mA output
• Real-time database can be queried and analyzed through RS-485 communication interface.
• GPRS real-time management system

Specifications

1. Material: Aluminum Alloy
2. Accuracy: 1.5%
3. Measuring Range: 1-450 m3/h
4. Pipe Size: DN25-DN200mm
5. Medium Temperature: -20 ~+60 ℃
6. Output: Pulse, RS485, 4-20mA
7. Pressure: 1.6MPa
8. Power: 24VDC or 3.6V Lithium battery
9. Connection: Flange
10. Ambient Temp.:-25 ~+80 ℃
11. Relative Humidity: 5-95%
12. Protection:IP65
