Level

Overview

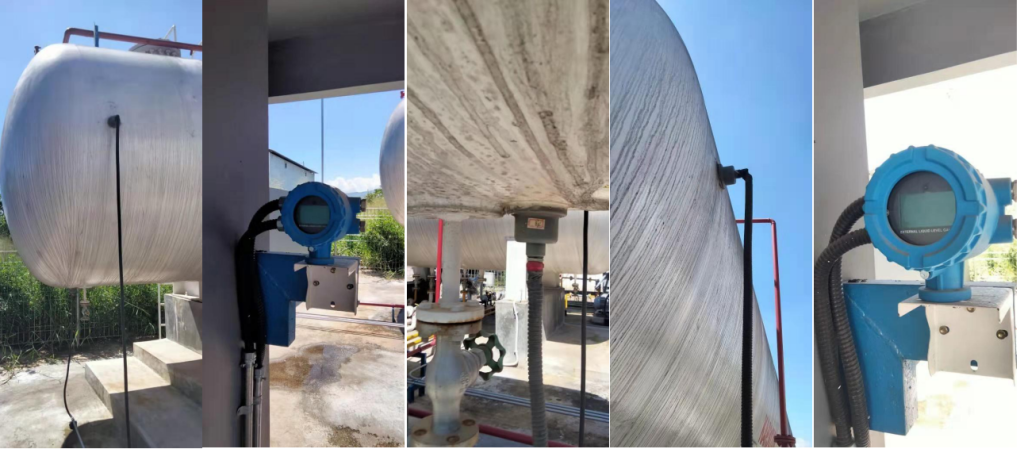

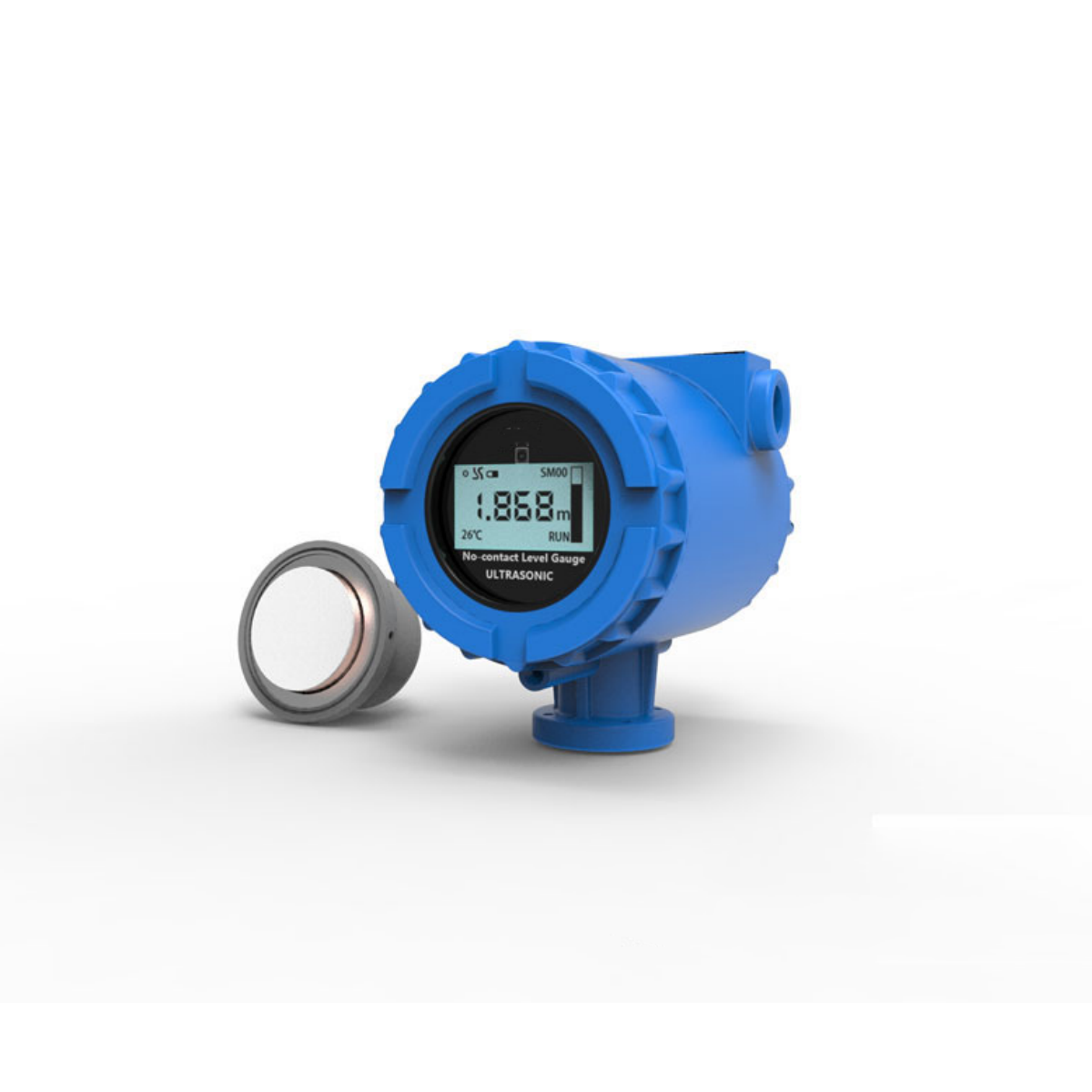

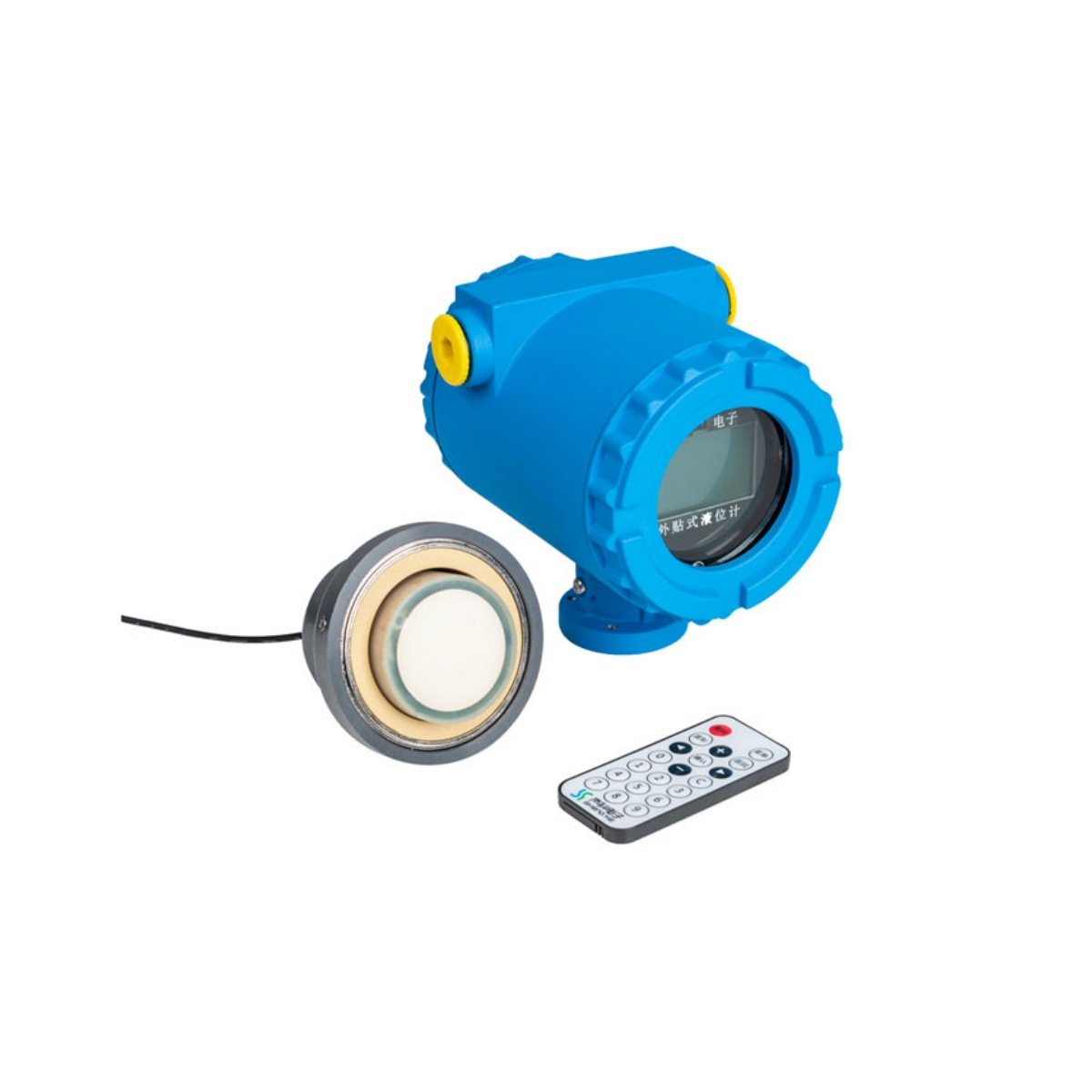

Non-invasive level transmitter is ideal for Storage Tank Monitoring /Instrument Renovation Projects. Designed for various Flammable, Explosive, Toxic liquid medium, including, but not limited to LPG, solvents, acids, fuels.

Features

• High and Stable Accuracy
• No tank break in; Non-drilling
• No moving part, No maintenance
• 100% safe, no leakage risk
• Operated by a remote control, No PC, No Oscilloscope
• Local display + Remote(4-20mA/RS-485)

Specifications

1. Max Measuring Range: 30 m (100ft)
2. Measuring Error: ±1%FS
3. Transfer Volum: ±100m
4. Frequency Range: 20k-400k
5. Signal Outpu: 4-20mA, HART,MAX 500Ω
6. Communication: RS-485,IR,HART
7. Environment Temp: -20℃~+70℃,-40℃~+70℃
8. Probe Sensor Max Temp.: 85℃
9. Ambient Humidity: (0~100%)RH
10. Explosion-proof: Exd IICT6
11. Enclosure Protection: IP67
12. Power Supply: 24VDC
13. Cable length, from sensor to transmitter: 5m,10m,15m,20m,25m,30m
