Overview

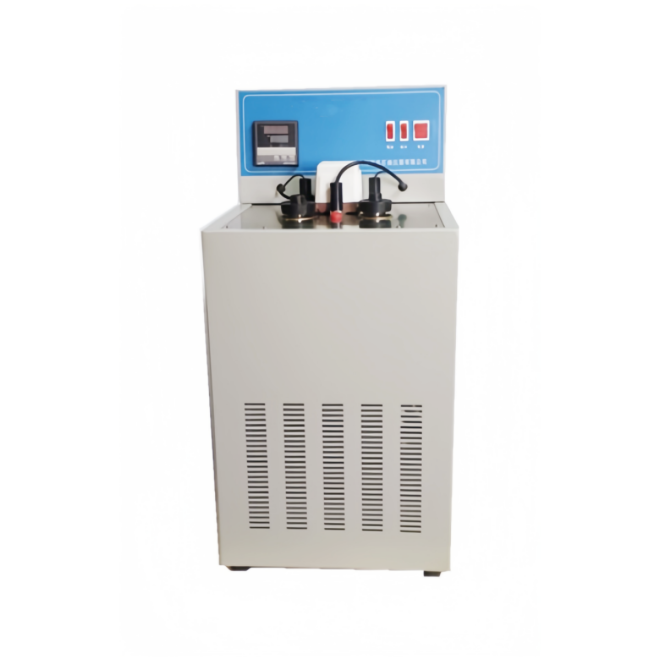

The pour point tester for petroleum products is designed and manufactured in accordance with ASTM D97 standard. It equipped with a low-temperature bath, each bath having two sample holes to test. This instrument is suitable for the determination of pour point and solidification point of petroleum products after combining with solidification point tester kits.

This instrument is mainly composed of a low-temperature cold source part and a constant temperature cold bath part. The low-temperature cold source part consists of a fully enclosed compressor and an evaporator. The constant temperature cold bath part consists of a low-temperature bath, an electronic temperature control system, a digital temperature display system, etc.

Specifications

1. Test Item: Pour point & solidification point
2. power supply: AC220V±10% 50Hz
3. Temp. control range: 30℃～-70℃
4. Temp. control accuracy: ±0.1℃
5. Cold bath: 1 with 2 test holes
6. Temp. controller: PID digital temp. controller

Packing List

1. Host
2. Fuse tube
3. Pour point test tube
4. Pour point thermometer
5. Pour point test tube rubber plug
6. Solidification point point test tube
7. Solidification point point thermometer
8. Solidification point point rubber plug
9. Solidification point point test tube sleeve ring
10. User manual and certificate
