Flow

Overview

Turbine flow meter has a rotor with bladed mounted on a bearing and supported inside the meter by a central shaft. When flow in the pipe, the kinetic energy of the product will make the rotor spin. When the flow moves faster, the rotor spins proportionally faster, which can be used to calculate the flow rate.

Specifications

1. Medium: Kinds of gas and liquid
2. Pipe Size: Gas：DN20-DN400mm；Liquid：DN4-DN80mm
3. Range: 1:10， 1：20，1:30
4. Accuracy: ±1.5%；±1.0%
5. Display: LCD
6. Power: 3.6V li-battery/24VDC
7. Pressure: 1.6MPa, 2.5MPa, 6.4MPa, 25MPa
8. Connection: Flange/Screw/Wafer/Insertion
9. Output: Pulse/4-20mA/RS485
10. Medium Temp.: Gas:-20~80℃;  Liquid:-20-120℃
11. Tube Material: Stainless Steel 304
12. Transmitter Material: Aluminum
13. Cable Gland: M20x1.5
14. Ambient: -25~80℃, <95%RH
15. Protection Class: IP65

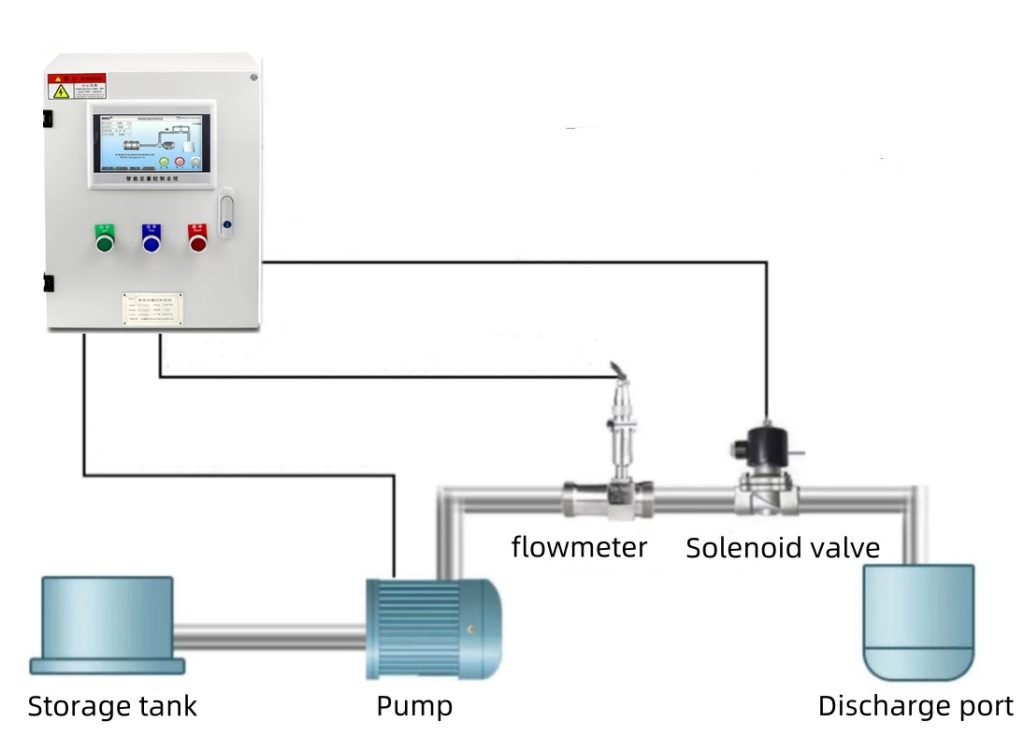

Batch Control System

Set the required quantitative value on the control instrument, provide the flow signal to the controller through the flow meter, and when the set amount is reached,  Automatically closed the solenoid valve, water pump, etc. The solenoid valve and water pump can be controlled at the same time or separately.
