Overview

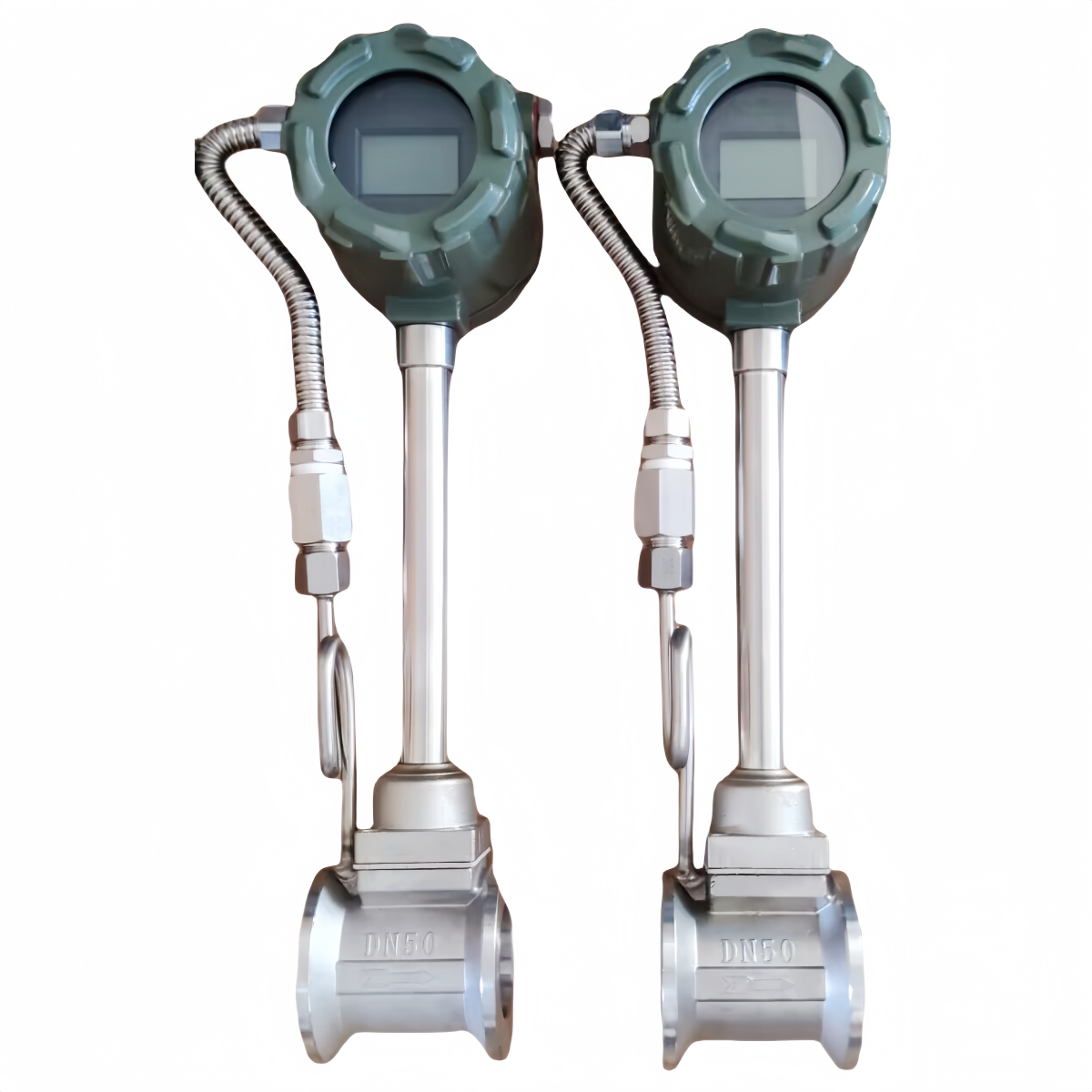

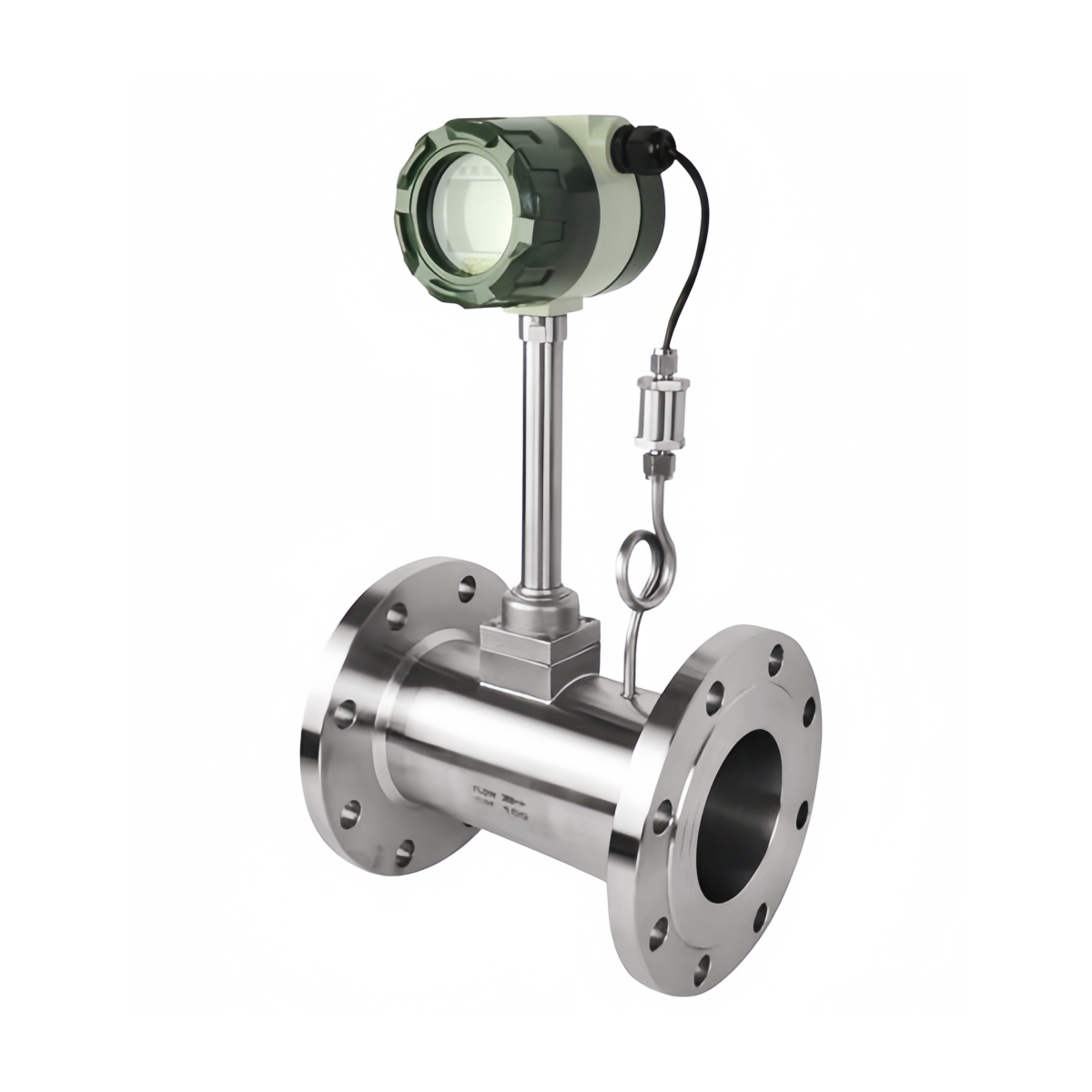

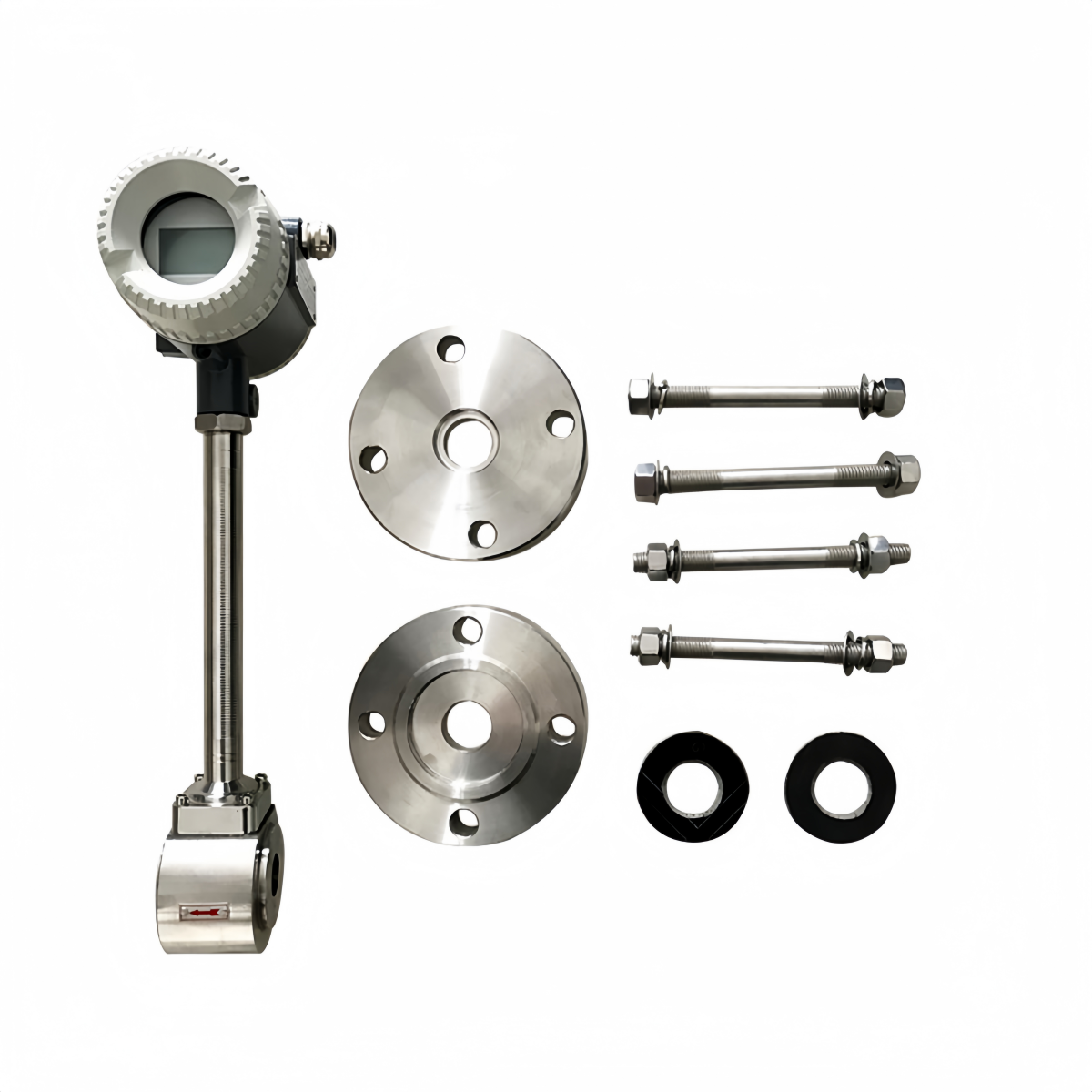

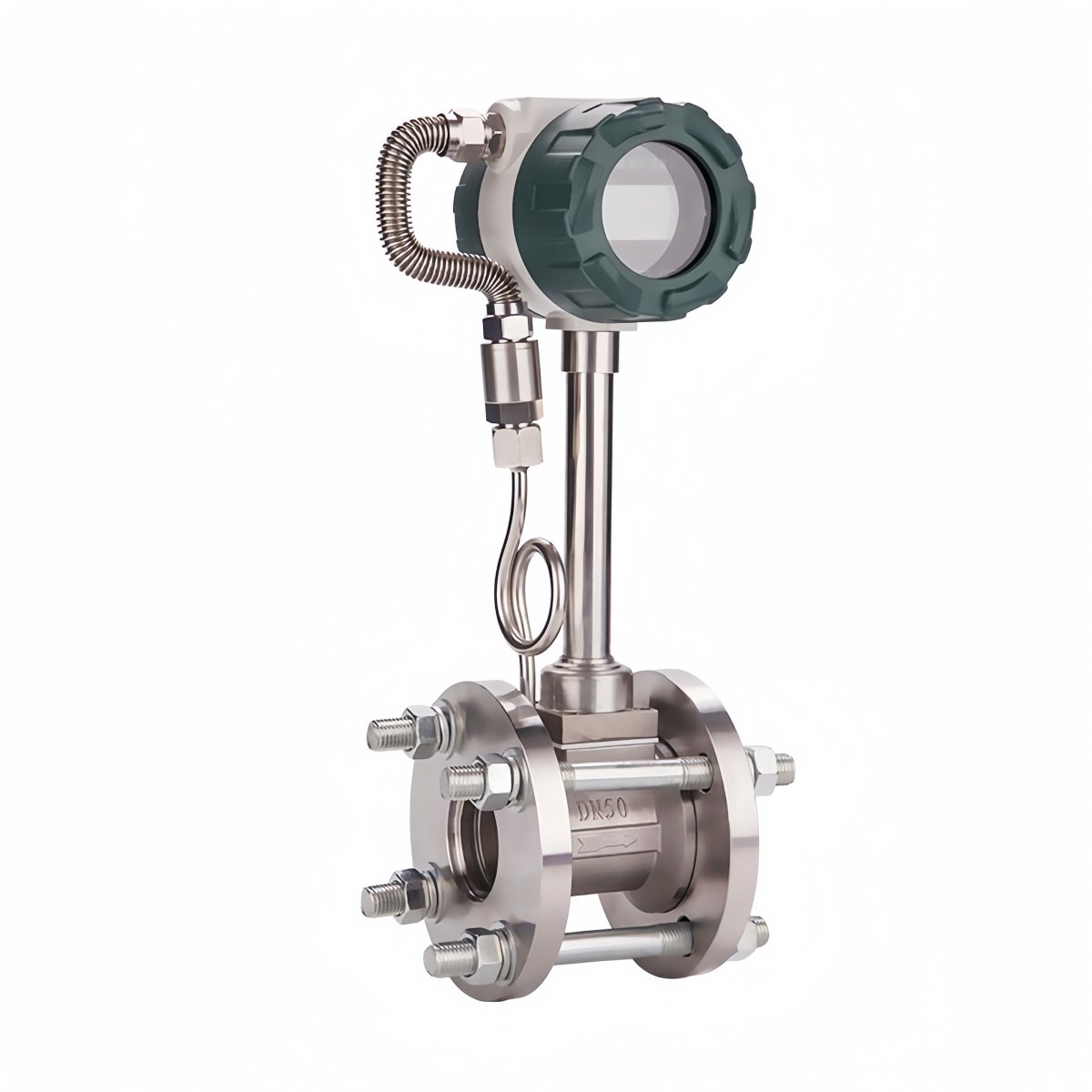

Vortex Flow Meter is based on “Karman” principle. It is a kind of the vibration meters. With simple configuration and install conveniently. It can measure and control various liquid (e.g.: water, oil, petroleum, alcohol, acid, alkali and different chemical fluids), gas (e.g.: air, oxygen, N2, natural gas, coal gas), and steam (e.g.: saturation steam, overheated water vapor).

Features

• Wide Measurement Range: Capable of measuring a broad range of flow rates, making them versatile for different applications.
• High Accuracy: Offers precise measurements with accuracy typically around ±1% of the flow rate.
• Low Maintenance: Few moving parts result in lower maintenance requirements and longer service life.
• Wide Temperature Range: -40℃～+400℃
• Multi-Fluid Capability: Can measure different types of fluids, including liquids, gases, and steam.
• Digital Output Options: Available with various output formats, including 4-20 mA, pulse output, and digital communication protocols (like Modbus).
• Integrated Temperature and Pressure Measurement: Some models offer additional sensors to monitor temperature and pressure, enhancing overall process control.

Speficication

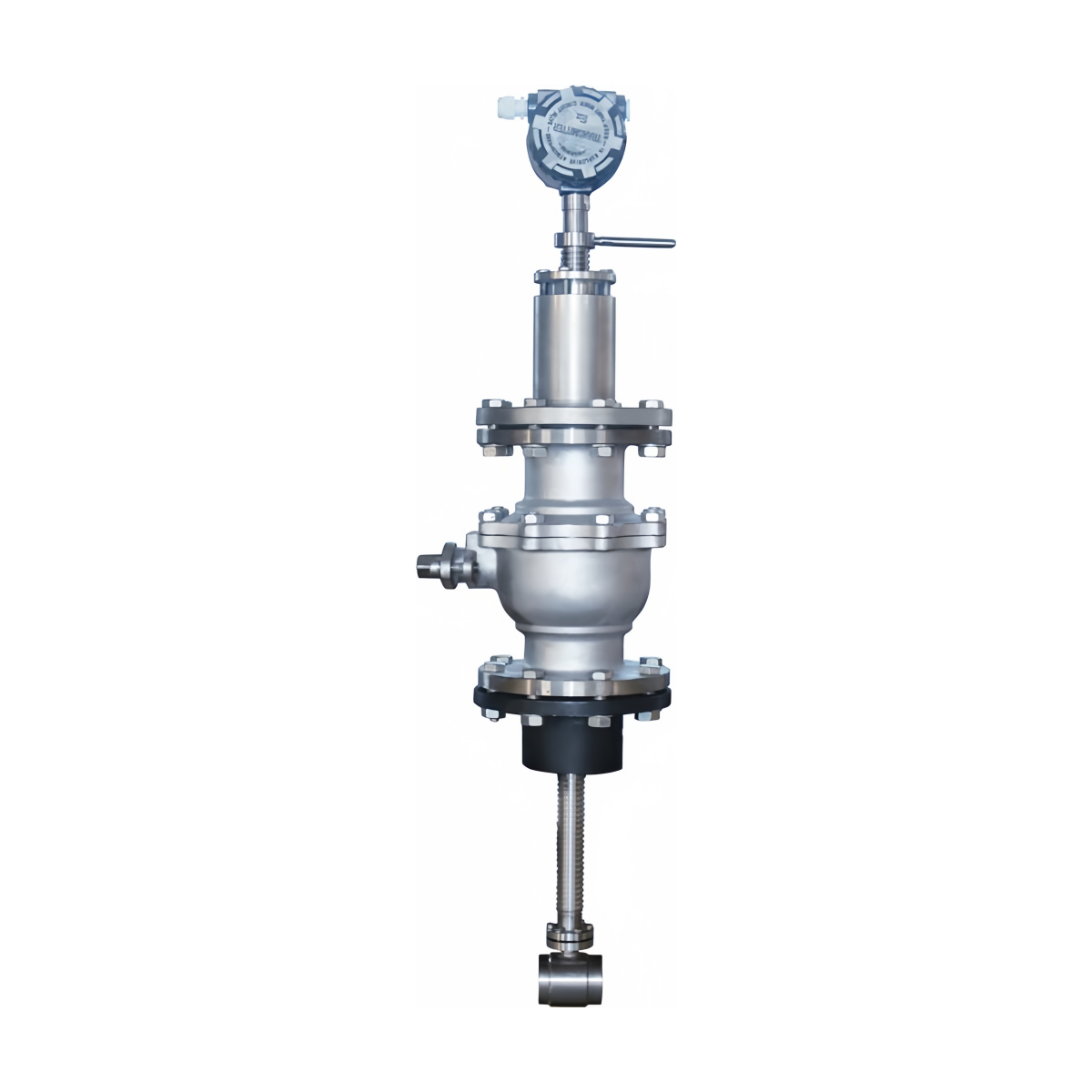

1. Diameter (mm): 15, 20, 25, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300, (300-1000 plug-in type)
2. Pressure (MPa): DN25-DN200 4.0 (>4.0 by agreement), DN250-DN300 1.6 (>1.6 by agreement)
3. Temperature (℃): Piezoelectric: -40-260, -40-320; Capacitive: -40-300, -40-400, -40-450 (by agreement)
4. Material: 1Cr18NiTi, (other materials by agreement)
5. Allowable vibration acceleration: Piezoelectric: 0.2g; Capacitive: 1.0-2.0g
6. Accuracy: ±1%R, ±1FS; Plug-in: ±2.5%R, ±2.5%FS
7. Range: 1:6～1:25
8. Power supply:  Sensor: +12V DC, +24V DC; Transmitter: +24V DC; Battery-powered type: 3.6V battery
9. Output signal: Square wave pulse (excluding battery-powered type); High level: ≥5V, low level ≤1V; Current: 4～20mA
10. Explosion-proof :Intrinsically safe type: ExdIIia CT2-CT5 ; Flameproof type: ExdIICT2-CT5
11. Protection: IP65/ IP68
12. Environmental conditions: Temperature -20℃～55℃, relative humidity 5%～90%, atmospheric pressure 86～106kPa
13. Applicable media: Gas, liquid, steam
14. Transmission distance Sensor: up to 4km, two-wire transmitter (4～20mA): load resistance ≤750Ω
