Overview

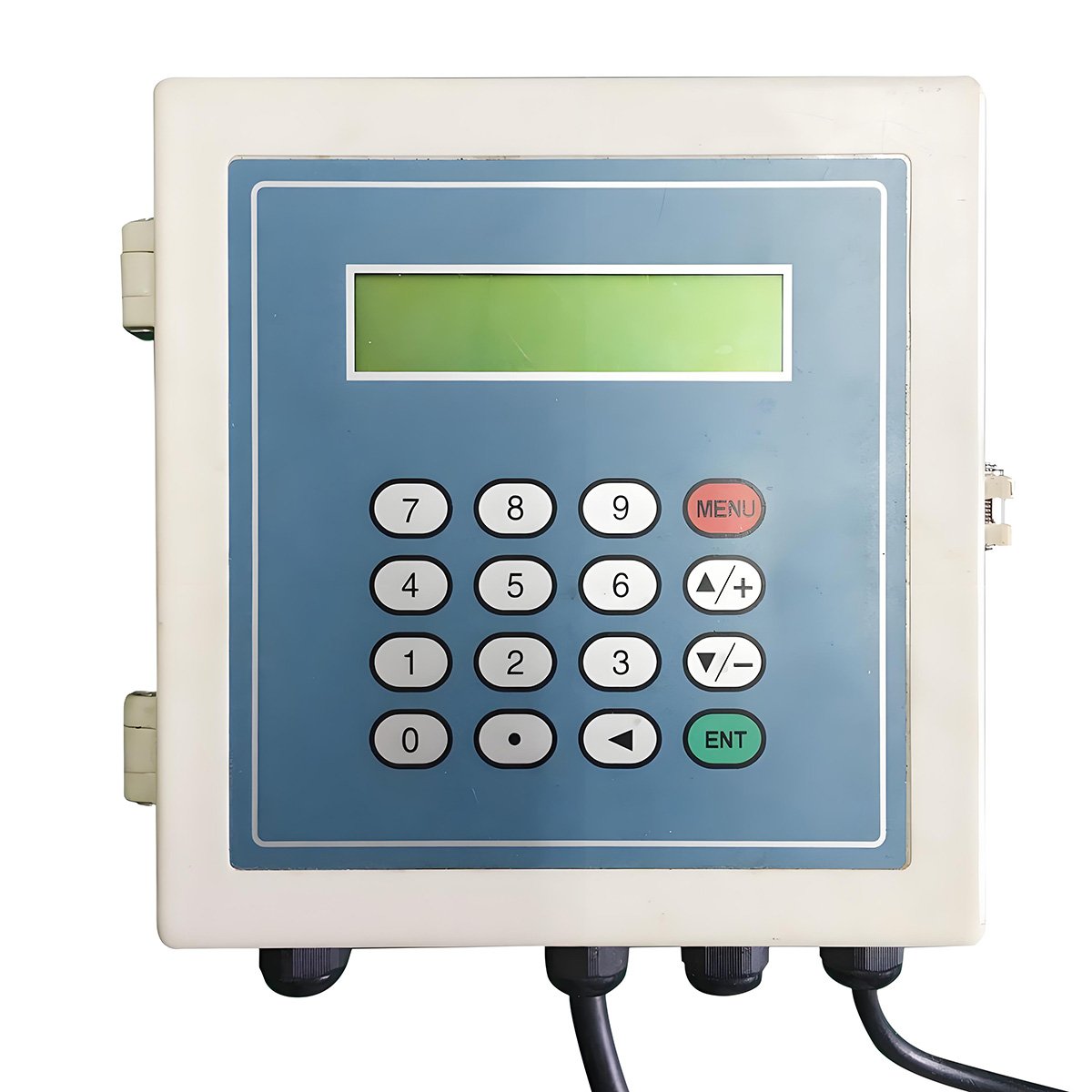

Wall Mount Ultrasonic Flow Meter is designed for long-term flow measurements on a closed pipe. It can be equipped with clamp on transducers, also can be equipped with insertion and inline type transducer to meet various applications.
Specifications
| PERFORMS | PARAMETERS |
| Principle | Ultrasonic signal transit-time method (single-path) |
| Repeatability | 0.2% |
| Accuracy | ±1% of reading at rates>0.6 ft/s. ±0.5% with on-site calibration |
| Measuring Period | 500mS |
| Velocity | 0 ~ ±64 m/s, bi-directional |
| Power | 85-264VAC/8-36VDC |
| Operation | 4/16 keypad |
| Display | 2*20 LCD display flow rate, totalizer and velocity, etc |
| Input | 4-20mA/PT100 (3 wires) |
| Output | RS485/4-20mA/OCT/Relay |
| Communication | MODBUS/M-BUS, HART communication option |
| Data Logger | Data logging with SD card (optional function) The data can be download to PC via software |
| Protection Class | IP65 |
| Pipe Size | 1/2” ~ 240” (DN15 ~ 6,000mm) |
| Others | Self-diagnosis function. Automatically record the following information: The first 512 days/ 128 months/ 10 years totalized data. The first 30 times power on/off and flow rate. Allow manual or automatic flow loss compensation. |
Optional Transducer
There are 3 types of transducers(clamp-on type, insertion type & inline type) for selecting. Select different types of transducers for different working conditions.
